Purlins and girts are primary secondary structural members in metal building systems. They transfer roof and wall loads to the main frame and play a critical role in overall structural stability. As load-bearing elements, they are manufactured with strict dimensional accuracy and material compliance.

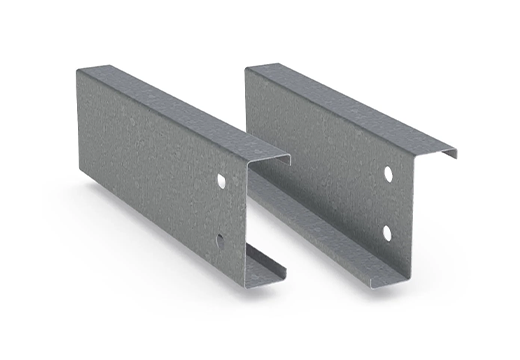

Purlins are thin-gauge, lightweight structural members primarily used as roof supports and secondary girders. They are available in multiple profile types, thickness ranges, and web heights to suit different spans, loads, and design requirements.
Girts are horizontal wall members that resist lateral wind loads and support external cladding systems. Manufactured from cold roll-formed steel, they ensure structural integrity, uniform load distribution, and ease of installation in metal building systems.
These are horizontal structural members of a roof. They support loads from the roof deck/sheathing and are commonly used in metal building systems. Being critical structural elements, they must be manufactured exactly to specification.
Purlins are thin-gauge lightweight construction elements produced by roll forming, mainly used as roof purlins and secondary girders. Purlins can be produced in an infinite variation, ranging from the smallest to the largest possible profile type, and in different overall heights.
GIRTS are horizontal structural members in a framed wall and resist lateral loads from wind and support wall cladding materials. They support metal siding in metal building systems and are generally constructed from cold roll-formed steel sections
| PURLIN | THICKNESS | WEB HEIGHT [MM] | FLAGE WIDTH [MM] | YIELD STRENGTH |
|---|---|---|---|---|
| Z PURLINS | 1.5MM - 3.15 MM | 125 - 300 | 55 - 120 | upto - 450Mpa |
| LIP CHANNELS | 1.2MM - 3.15 MM | 100 - 300 | 60 - 75 | upto - 450Mpa |
| PLAIN CHANNELS | 1.20MM - 6.0 MM | 40 - 300 | 40 - 100 | upto - 350Mpa |
| ANGLES | 1.20MM - 5.0 MM | 40 - 300 | 40 - 100 | upto - 350Mpa |
Sag Rods, Cleats, Sleeves, and Eve Struts will be supplied along with Purlins
1. Our Technical department offers comprehensive advisory service on the Design and detailing of Purlins based on Shop drawings of the site
2. Purlins can be pre-punched in our factory. This makes construction on-site faster and easier.
3. Holes are made after production at a continuous line
4. For HR Purlins, Paint of Red Oxide Primer/Grey Primer will be applied as per request
5. Design & supply of Cleats/Sleeves/sag rods in addition to Purlins
GIRTS are horizontal structural members in a framed wall and resist lateral loads from wind and support wall cladding materials. They support metal siding in metal building systems and are generally constructed from cold roll-formed steel sections.
Metalkraft manufactures Purlins and Girts from different grades of quality steel with requisite yield strength to minimise weight while maximising capacity. We manufacture a wide range of structural ZED and CEE Purlins and Girts for industrial buildings, sheds, storage, garages, carports, etc., where reliable solid steel framing is required.
