Deck Panel

Composite steel floor decking is cold-formed steel sheeting that functions both as permanent formwork and as positive reinforcement for concrete slabs. Special embossments and ribs create a mechanical bond between steel and concrete, ensuring composite action. Once installed, the deck also serves as a safe working platform during construction.

We manufacture and supply four standard deck depths:

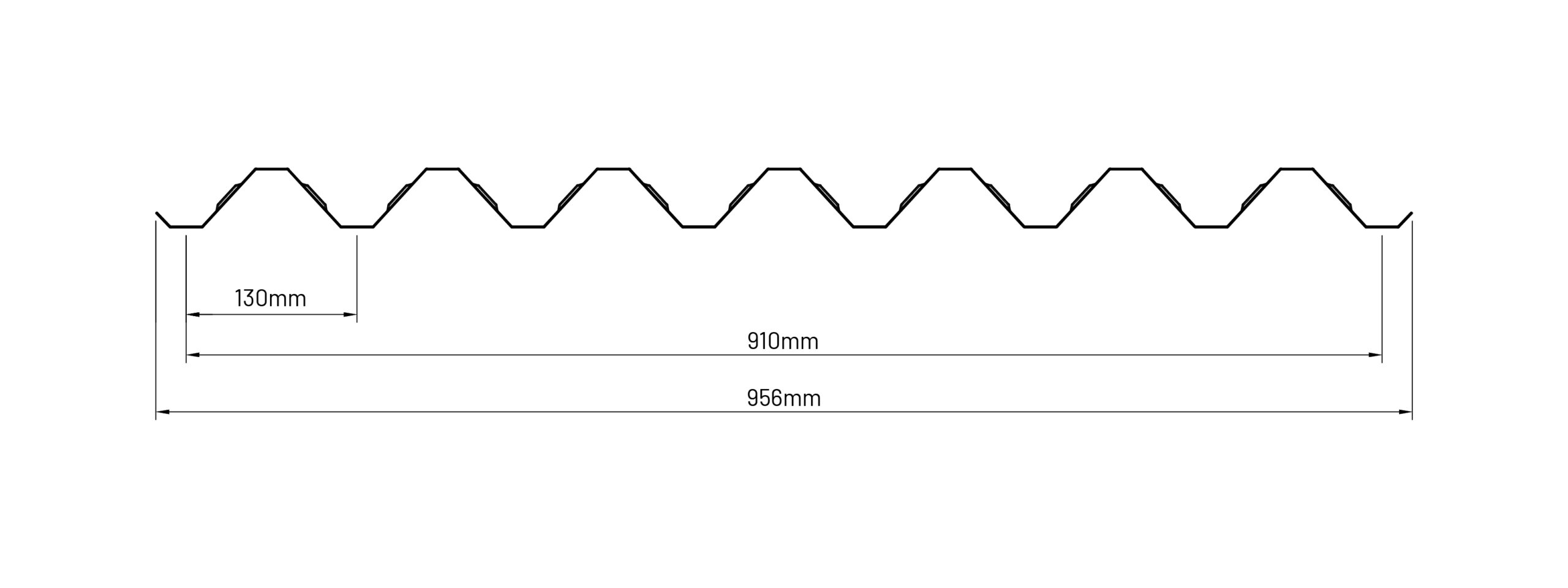

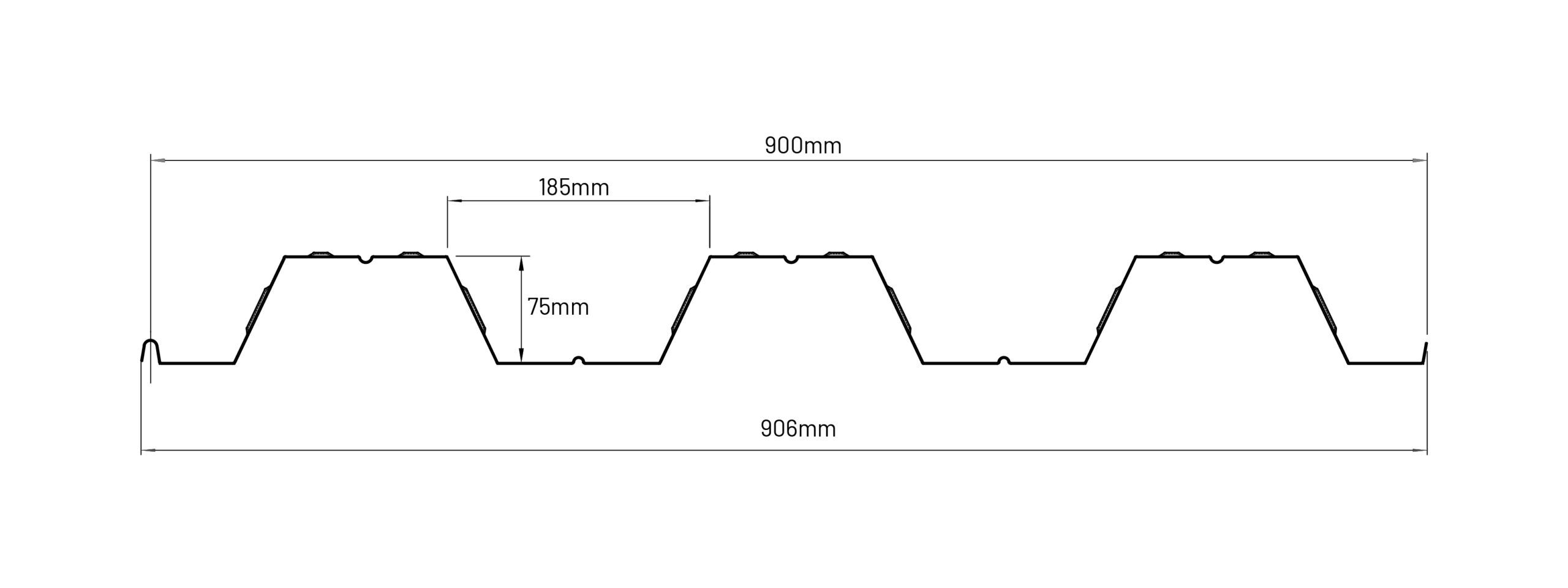

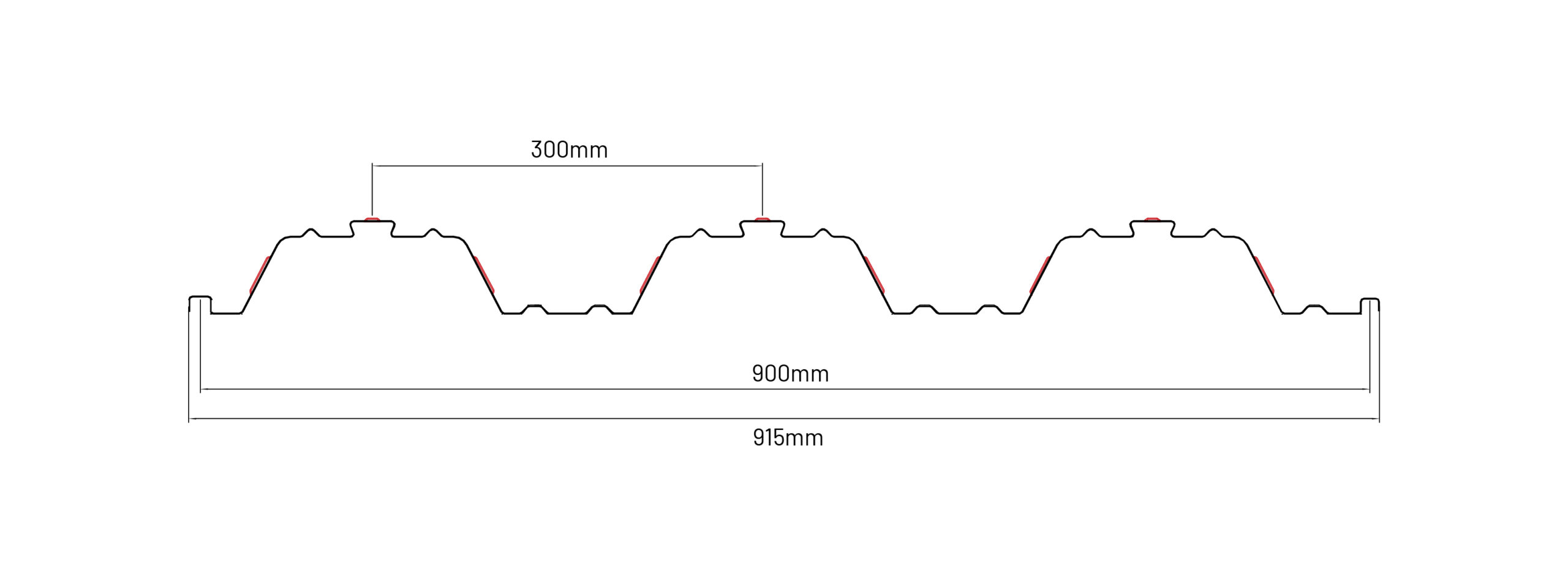

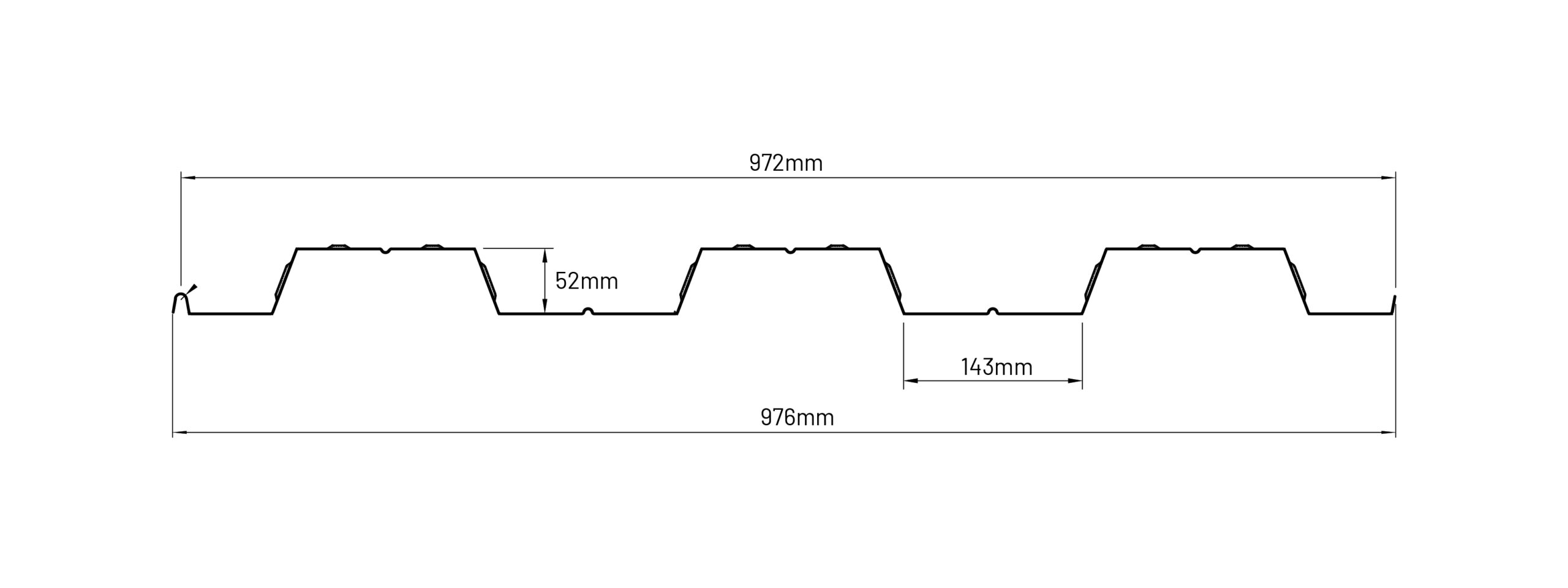

44 mm, 52 mm, 60 mm, and 75 mm

Finish

  • CR STEEL as per IS 513  Grade
  • BGL AZ 150gsm, 550Mpa (0.80mm only)
  • Galvanized Steel as per IS 277/ ASTM A563
  • Pre Painted Galavanized/ Galvalume Steel as per AS 1397/IS 14246

Applications

  • High Rise Buildings
    Multiplexes / Commercial Buildings
  • Power Plant Buildings
    Office, Hostel, Residential Buildings
  • Mezzanine Floors in Industrial Buildings & Warehouses
  • Steel floor deck for mezzanine floors

Advantages

  • Available in lengths up to 12 meters and thickness from 0.6 to 1.6 mm
  • Multiple profile options suited to structural design requirements
  • Consistent quality with reliable on-time delivery
  • Reduced concrete consumption and slab weight
  • Eliminates need for separate formwork
  • Faster construction cycle
  • Technical support for composite floor design based on shop drawings and site loads

Types
